AUTO

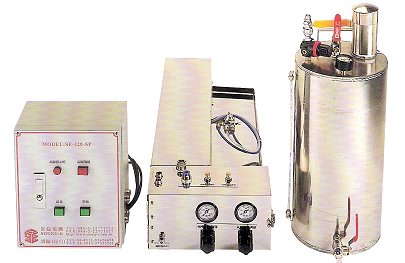

TRAVELLING FLUX SPRAYERSE-420-SP
|
|
|
- Can work
with any thpe of solder furnace , or conveyor, replacing traditional
foam tank.
- The potical
sensor equipped with the machine can detect the width, length
of PCB,soldering line speed,thus can prevent over-use flux.
- Unique spray
allows flux in spiral fog shape and make soldering on PCB very
even. It not only enhance flux effect, but also can eliminate
defects usually found in traditional foam or roller type of solder
tank.
- Unique design
can help save flux consumption by 40%, in comparison with foam
or roller type of solder tank, reducing manufacturing cost.
- With environment-friendly
design, the soldering can be made without residue; No extra cost
for waste treatment and decreasing cost.
- Auto process
and compact display allow workers, even without training, operate
easily.
- The required
air pressure is only 3K, plus pressure-loss protection, allows
constant operation without interruption and makes soldering flux
on PCB very even.
- Strict quality
control and testing before shipment, easy to maintain.
|
| Type \ Model | SE-420-SP |
| Power |
AC 110~240V
50~60Hz | | Air
Pressure | 500L/min.
at 4~5 bar | | Spray
Nozzle Stroke | 20~400
mm | | Sprayer
Capacity | 5~10
L | | Spray
Pressure | Min
0.3Kg/cm2~1Kg/cm2 |
| Virtual
Spray Width | 400
mm | | Size
in Apperance | 720(L)
x 350(W) x 200(H) mm | | Control
Box Size | 310(L)
x 210(W) x 160(H) mm | | Weight |
90Kgs |
|
