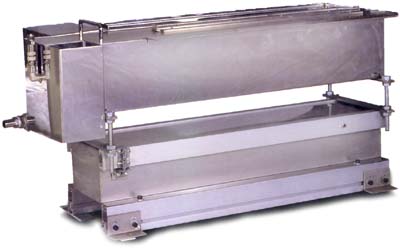

ROLLER
TYPE AUTO FLUX SPRAYER SE-350-SP |
| | - The
distance between each PCB can be red
-
Continual soldering even PCB is different in size.
- Speed
can be automatically adjusted ; manual control is needless.
- The
amount of flux coating can be adjusted simply be changing roller speed or air
pressure.
- Spray
nozzle with a bump can adjust the width of PCB, making spraying fog very even.
- A
flux auto gravity controller can be chosen as optional device.
- The
OFF time of roller motor can be set
- Spraying
fog can be set before or after PCB, advance or delay, depending on PCB or fixture.
- The
basement structure allows spray tank replace flux tank.
|
| |
| Type \ Model | SE-350-SP |
| Power |
1ψ 220V
5A(MAX) | | Minimum
Pressure | 4Kgs/cm2 |
| PLC |
Mitsubishi |
| Motor |
Panasonic
25W 1ψ 220V | | Basement
Size | 680(L)
x 260(W) x 120(H) mm | | Spray
Tank Size x 2 | 820(L)
x 390(W) x 220(H) mm | | Control
Box Size | 360(L)
x 350(W) x 220(H) mm | | Weight |
150Kgs |
|
|
