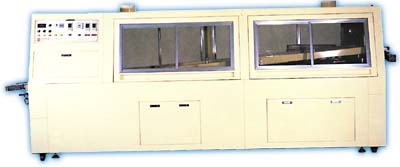

FLIP-TYPE
EXTENDED DUAL WAVE SOLDERING FURNACESELL-400-CA |
| |
|
| | Size:3560(L)
x 1400(W) x 1550(H) mm |
| Inlet height 800mm ±50mm，Outlet height 1200mm ±50mm |
| Conveyor rail:4000
mm | | Solder
pot:750(L) x450(W) x220(H) mm | | Timer:Germany-made
weekly timer | | Pre-heater: One sets two section contion control,12pcs ceramic tube total lenght2000
mm |
| Exhaust:8" x
3 |
| PCB
size:400 mm (max) | | Weight:1800Kgs |
|
Double wave machine with soldering knife which can be adjusted in 4ways |
| Type \ Model |
SELL-400-CA | | Power |
3ψ or 1ψ
220V 21.5KW 80A | | Prosuction | 8
Hour | 2,200
PCS | | PCB
size | 250
x300 mm | | Conveyor | Speed |
0 ~ 2400
mm/min. | | Tilting
Angle | 2°~6.5° |
| Bubble
Flux Tank | Flux
Capacity | 8L |
| Air
Pressure | 1.5Kg/cm2 |
| Preheater | Power
Consumption | 9KW
x 2 , 25A x 2 | | Temperature
Range | 0℃~599℃ |
| Solder
Pot | Power
Consumption | 10.8KW |
| Temperature
Range | 0℃~399℃ |
| Nozzle |
0 ~ 400
mm | | Flow
Height | 0
~ 12 mm | | Solder
Capacity | 400Kgs |
| Motor |
Panasonic
90W x 2 | | Weight |
about 1,800Kgs |
