MULTI-POINT SOLDERING FURNACE

SE-888-D1 / SE-888-D2

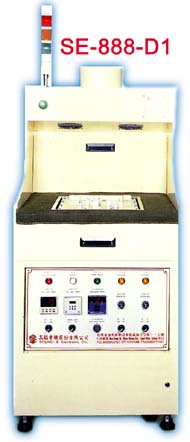

Speciffications
Type:Single pot
Size:835(L) x 655(W) x 1560(H) mm
PCB size:300 x300 mm
Strong suction air tube:8"x1
Weight:250Kgs
Features
Special own made fixture mold.
Stable solder surface;good soldering quality
Fixture can be made to meet PCB hole position
Soldering time can be set by the counting
  digit in second.
Stable descending.
Operation switch can be controlled by hand or leg.
Using P.I.D. to control temperature.
An extra heat proof device equipped with
  working desk.

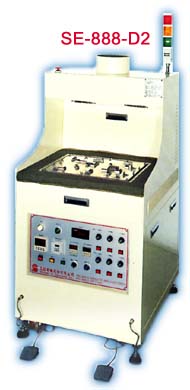

Specifications
Type:Twin pot
Size:835(L) x 715(W) x 1560(H) mm
Working desk:850(H) mm
PCB size:300x450 mm
Strong suction air tube:8"x1
Weight:300Kgs
Features
The first leading company in twin pot of
  Multi-Point Soldering Machine
Motor can operate separately depending on the
. type of the pot
Soldering time can be set to prevent PCB or
  parts from being damaged.
Buzzer alert when soldering is finished,
  the soldering suface is descending steadily.
Customized fixture, easy to change.
An extra heat proof device equipped
  with working desk.
Power supply voltage can be installed as the
  customer's requires.
The safety loop equipped with the machine can
  prevent the motor from operating before the setting
  temperature is not yet reached.




The demo picture shows steady soldering surface


Fixture design is based on the component layout on PCB


Type \ Model
SE-888-D1
SE-888D2
Power
3ψ or 1ψ 220V
3ψ or 1ψ 220V
Power of Solder Pot
6KW, 16 A
6KW, 16 A
Capacity for Solder Pot
200 Kgs
270 Kgs
Solder Pot Motor
90W x 1
90W x 2
Solder Pot Temperature Control Rang
0℃~399℃
0℃~399℃
Precheat Time
80 min
90 min
PCB Size
300 x 300
300 x 450
Weight
about 250Kgs
about 300Kgs
