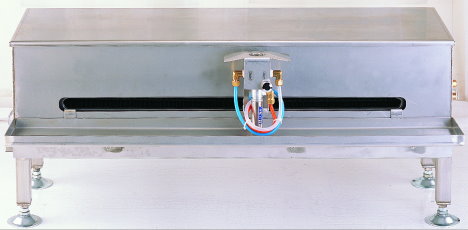

SE-100-SST
Servo Travelling Shut-off Flux Sprayer
SE-100-SST
Auto detect starting sensor for servo flux spraying
6" touch monitor and control system
Stainless steel air shut-off type nozzle BETE
XAEF100(One Stet)
Spraying width:nozzle spraying maximum width can
reach to 400mm
Spraying mode adopted SMC prwssure reducer auto
adjustment.High accurate flux flow controller
convert to air shut-off nozzle flow and produce
highly atomized sprays
Nozzle stucture:Internal mix set-ups with air shut-
off special structure theory, precise metering of the
flux flow rate in mg/cm2
Wiring auto control system one set (with non-flow
Pressure FLUX Tank
alarm function)
Detect mode:Photo sensor auto detection.
Spraying control: control by micro computer with
auto nozzle cleaning system
All air devices using Japan made SMC parts.
Programmable controller with encoder system.
Program setting suited to the PCB width and
suitable flux flow of spraying
One set 6" touch monitor
One set servo motor
One set nozzle sliding rail
One set SICK photo sensor and encoder
One set pressure flux tank 10~15L
One set pressure reducer value SMC ITV2010-CS23
One set high accurate flux flow contooller SNN 503
Stainless steel air shut-off nezzle
GSP Can detect flux flow rate per minute
One set flux level alarm system
Machine size:720(L) x 350(W) x 200(H) mm
AC110-240V 50-60Hz
Air Pressure:4-6Kg
Machine weight:90Kg
Features:
Accurate control of nozzle, reduce flux pollution to
PCB
Digital control of flux flow rate, stabilize atomizing
to avoid humanity fault.
Easy maintenance
