High-Wave Solering Furnace SE-250-H
Dual-Wave Solering Furnace SE-250-CA
|
|
|
| Sise:2100(L) x 1070(W) x 1550(H) mm |
| Conveyor:2500mm |
| Solder Pot:750(L) x480(W) x320(H) mm |
| Timer:weekly timer |
| Pre-heater:One ceramic tube , two section control,total length 800
mm |
| Exhaust :8" x 2 |
| PCBSise 300 mm |
| Wave height:0~30mm |
| height:750Kg |
|
|
| Sise2100(L) x 1070(W) x 1550(H) mm |
| Conveyor:2500mm |
| Solder Po:750(L) x450(W) x220(H) mm |
| Timer:weekly timer |
| Pre-heater:One ceramic tube , two section control,total length 800
mm |
| Exhaust:8" x 2 |
| PCBWave height300 mm |
| height:750Kg |
|

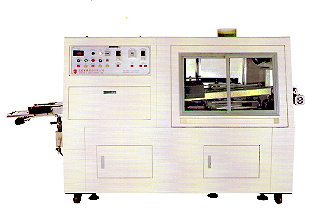

高波錫槽外觀 |
| Type / Model |
SE-250-H |
SE-250-CA |
| Power |
|
|
| Prudction |
8Hours |
2,500 PCS |
1,500 PCS |
| Conveyor |
200
× 200 mm |
200
× 200 mm |
| Conveyor |
Speed |
0~2400
mm / min. |
0~2400
mm / min. |
| Preheater |
0°~4° |
0°~4° |
| Bubble Flux Tank |
Flux Capacity |
8L |
8L |
| Air Pressure |
1.5kg/c㎡ |
1.5kg/c㎡ |
| Preheater |
Power Consumption |
6KW,16A |
6KW,16A |
| Temperature Range |
0°C~599°C |
0°C~599°C |
| Solder Pot |
Power Consumption |
10.8
KW |
9
KW |
| Temperature Range |
0°C~399°C |
0°C~399°C |
| Nozzle |
0~300mm |
0~350mm |
| Flow Height |
0~30mm |
0~12mm |
| Solder Capacity |
400Kg |
320Kg |
| Motor |
200W × 2 |
200W × 2 |
| Weight |
about750Kg |
about750Kg |
|
|
