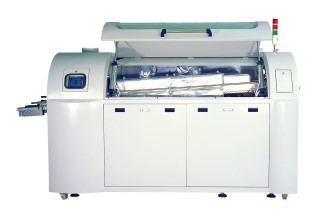

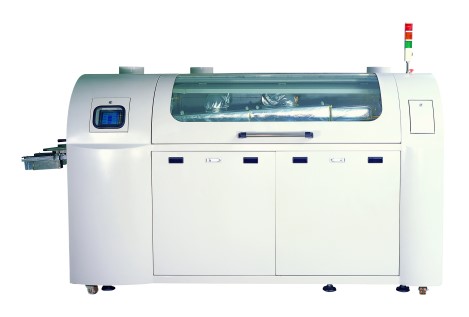

Unleaded Double Wave Soldering Machine(Circulating Preheating System) SE-300-CTV
Environmental Peotection&Energy-Saving Soldering Machine


SE-300-CTV
Size:2650(L) x 1250(W) x 1600(H) mm
Power-Air-door adopted, double layer machine body

　for heat insulation


Conveyor Height:Inlet Height 850mm ±50mm，
  Outlet Height1050mm ±50mm
Conveyor Rail: 3000 mm，Inlet Height1:250mm，
  Total Length 3250mm
Finger Cleane Device :10∼15W(Japan Made Motor)
Exit Cross-Flow Fan:20∼25WMotor
Solder Pot Size :External765(L) x 470(W) x 310(H)
  mm，Internal747(L) x 350(W) x 250(H) mm
Exhaust:8"x 3
Operation System :Touch Screen(5.7")
PCB Maximum Width:300 mm，Custom-
  Madefor400 mm and above available

Specifications \ Model
SE-300-CTV
Power Souerre
3Ø 220V15KW(approx)40A, 3Ø 380V15KW(approx)23A
Conveyor Speed
0∼2400mm/min.
Angle
4.3°∼ 6.5°
Flux Foaming Tank Capacity
7L
Air Pressure
2Kg/cm2
Hot Air Preheater Power Consumption
15KW
Temperature Range
0℃~250℃
Solder Pot Power Consumption
3Ø 220V8.1KW(approx)22A, 3Ø 380V8.1KW(approx)13A
Temperature Range
0℃~300℃
Wave Width
50∼300mm
Wave Height
0∼15mm
Capacity
approx350Kg
Motor
90W x 2
Machine Weight
approx2,000Kg
