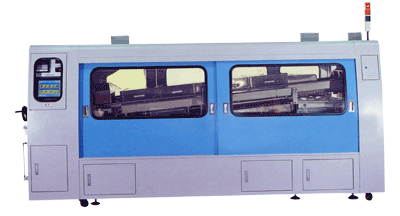

COMPUTERIZED DUAL WAVE LEAD-FREE SOLDERING FURNACESELL-350-CTV
This model conforms to Lead-Free technological quality.
SELL-350-CTV
Machine Size：3400(L)×1400(W)×1600(H)mm
Conveyor Rail：3500mm ，with finger cleaner system
Inlet Chain Conveyo:250mm
Solder Pot：1050(L)×470(W)×275(H)mm
Pre-heater:One set 12 pcs ceramic tube, two section control
One set heater fan(patent),6KW
Exhaust：8"×3
PCB size350mm (max)
Built in 10"touch screen control panel.
weight: 2200Kg



內置式噴霧機高壓筒配置圖

自動進料鍊條輸送帶

Type \ Model
SELL-350-FTV
Power Souerre
3Ø 220V115Aor380V 68A
Production 8Hours
2,000PCS
pcb Size
250x300mm
Conveyor Speed
0∼2400mm/min.
Tilting Angle
3°∼ 4°
Bubb Flux Tank Flux Capacity
8L
Air Pressure
1.5kg/cm2
Preheater Power Consumption
16.8KW
Temperature Range
0℃~599℃
Heater Fan Power Consumption
6KW
Temperature Range
0℃~220℃
Solder Pot Power Consumption
13.8KW
Temperature Range
0℃~399℃
Nozzle Width
0∼400mm
Flow Height
0∼12mm
Solder Capacity
approx450Kg
Motor
panaonic motors
Machine Weight
approx.2800Kg
