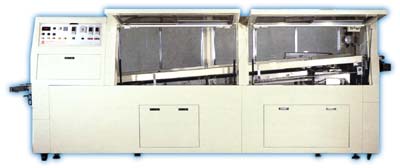

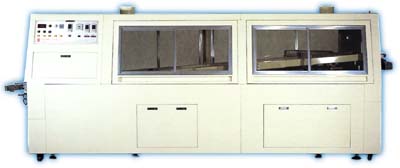

FLIP-TYPE EXTENDED DUAL WAVE SOLDERING FURNACE SELL-450-CA





Specifications
Size:4060(L) x 1400(W) x 1600(H) mm
Weight:2200Kgs
Conveyor rail:4500 mm
Solder pot:755(L) x 470(W) x 250(H) mm
Timer:Germany-made weekly timer
Pre-heater: One sets two section contion control,12pcs ceramic tube total lenght2000 mm
Exhaust:8" x 3
PCB size:400 mm(max) ,above 400mm can be special made
Weight:2200Kgs
